ジョイントフリューム
		ＮＵＪ工法製品。水路幅300〜2,000mmまでの断面設定。

ジョイントフリューム（ＪＦ）

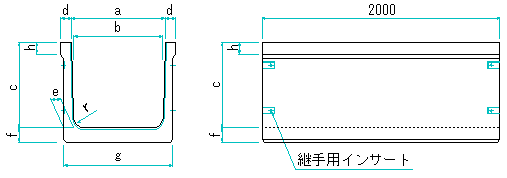

呼　び　名 幅(a)×深さ(b)	寸　　法　　（mm)									参考質量 (kg)	備　　　　考
	a	b	c	d	e	f	g	h	r
300×300	300	260	300	60	60	60	380	50	50	261
300×400	300	250	400	60	65	65	380	50	50	328
400×400	400	350					480			359
500×400	500	450					580			389
600×400	600	550					680			419
700×400	700	650					780			450
800×400	800	750					880			481
450×450	450	410	450	65	65	65	540	50	60	416
300×500	300	250	500	75	75	75	400	70	70	457
400×500	400	350					500			493
500×500	500	450					600			533
600×500	600	550					700			568
700×500	700	650					800			603
800×500	800	750					900			638
900×500	900	850					1,000			674
1000×500	1,000	950					1,100			709
500×600	500	450	600	85	85	85	620	70	70	684
600×600	600	550					720			724
700×600	700	650					820			764
800×600	800	750					920			804
900×600	900	850					1,020			844
1000×600	1,000	950					1,120			884
1100×600	1,100	1,050					1,220			924
1200×600	1,200	1,150					1,320			964
700×700	700	640	700	100	100	100	840	80	80	992
800×700	800	740					940			1,039
900×700	900	840					1,040			1,086
1000×700	1,000	940					1,140			1,133
1100×700	1,100	1,040					1,240			1,180
1200×700	1,200	1,140					1,340			1,277
1300×700	1,300	1,240					1,440			1,274
1400×700	1,400	1,340					1,540			1,321
700×800	700	640	800	105	100	100	840	80	80	1,077
800×800	800	740					940			1,124
900×800	900	840					1,040			1,171
1000×800	1,000	940					1,140			1,218
1100×800	1,100	1,040					1,240			1,265
1200×800	1,200	1,140					1,340			1,312
1300×800	1,300	1,240					1,440			1,359
1400×800	1,400	1,340					1,540			1,406
1500×800	1,500	1,440					1,640			1,453
1600×800	1,600	1,540					1,740			1,500
1700×800	1,700	1,640					1,840			1,556
1800×800	1,800	1,740					1,940			1,597
900×900	900	820	900	110	110	110	1,040	80	80	1,348
1000×900	1,000	920					1,140			1,399
1100×900	1,100	1,020					1,240			1,451
1200×900	1,200	1,120					1,340			1,503
1300×900	1,300	1,220					1,440			1,555
1400×900	1,400	1,320					1,540			1,606
1500×900	1,500	1,420					1,640			1,658
1600×900	1,600	1,520					1,740			1,710
1700×900	1,700	1,620					1,840			1,761
1800×900	1,800	1,720					1,940			1,813
900×1000	900	820	1,000	120	120	120	1,060	100	100	1,600
1000×1000	1,000	920					1,160			1,658
1100×1000	1,100	1,020					1,260			1,714
1200×1000	1,200	1,120					1,360			1,770
1300×1000	1,300	1,220					1,460			1,827
1400×1000	1,400	1,320					1,560			1883
1500×1000	1,500	1,420					1,660			1,940
1600×1000	1,600	1,520					1,760			1,996
1700×1000	1,700	1,620					1,860			2,052
1800×1000	1,800	1,720					1,960			2,109
1900×1000	1,900	1,820					2,060			2,166
2000×1000	2,000	1,920					2,160			2,222
1000×1100	1,000	910	1,100	140	140	140	1,190	100	100	2,068
1100×1100	1,100	1,010					1,290			2,134
1200×1100	1,200	1,110					1,390			2,200
1300×1100	1,300	1,210					1,490			2,265
1400×1100	1,400	1,310					1,590			2,331
1500×1100	1,500	1,410					1,690			2,397
1600×1100	1,600	1,510					1,790			2,453
1700×1100	1,700	1,610					1,890			2,529
1800×1100	1,800	1,710					1,990			2,594
1900×1100	1,900	1,810					2,090			2,660
2000×1100	2,000	1,910					2,190			2,726
1000×1200	1,000	900	1,200	150	150	150	1,200	100	100	2,333
1100×1200	1,100	1,000					1,300			2,404
1200×1200	1,200	1,100					1,400			2,474
1300×1200	1,300	1,200					1,500			2,545
1400×1200	1,400	1,300					1,600			2,615
1500×1200	1,500	1,400					1,700			2,686
1600×1200	1,600	1,500					1,800			2,756
1700×1200	1,700	1,600					1,900			2,827
1800×1200	1,800	1,700					2,000			2,897
1900×1200	1,900	1,800					2,100			2,968
2000×1200	2,000	1,900					2,200			3,038
1000×1300	1,000	890	1,300	150	150	150	1,190	100	100	2,417
1100×1300	1,100	990					1,290			2,489
1200×1300	1,200	1,090					1,390			2,560
1300×1300	1,300	1,190					1,490			2,632
1400×1300	1,400	1,290					1,590			2,702
1500×1300	1,500	1,390					1,690			2,773
1600×1300	1,600	1,490					1,790			2,843
1700×1300	1,700	1,590					1,890			2,914
1800×1300	1,800	1,690					1,990			2,984
1900×1300	1,900	1,790					2,090			3,055
2000×1300	2,000	1,890					2,190			3,125
1000×1400	1,000	870	1,400	155	155	155	1,180	100	100	2,571
1100×1400	1,100	970					1,280			2,644
1200×1400	1,200	1,070					1,380			2,717
1300×1400	1,300	1,170					1,480			2,789
1400×1400	1,400	1,270					1,580			2,863
1500×1400	1,500	1,370					1,680			2,935
1600×1400	1,600	1,470					1,780			3,008
1700×1400	1,700	1,570					1,880			3,081
1800×1400	1,800	1,670					1,980			3,154
1900×1400	1,900	1,770					2,080			3,227
2000×1400	2,000	1,870					2,180			3,240
1000×1500	1,000	860	1,500	160	160	160	1,180	100	100	2,757
1100×1500	1,100	960					1,280			2,832
1200×1500	1,200	1,060					1,380			2,907
1300×1500	1,300	1,160					1,480			2,983
1400×1500	1,400	1,260					1,580			3,058
1500×1500	1,500	1,360					1,680			3,133
1600×1500	1,600	1,460					1,780			3,208
1700×1500	1,700	1,560					1,880			3,283
1800×1500	1,800	1,660					1,980			3,359
1900×1500	1,900	1,760					2,080			3,434
2000×1500	2,000	1,860					2,180			3,509
